Testing Metrics - Are They Really So Important?

Software testing metrics are essential tools for evaluating the quality and effectiveness of the testing process. They provide valuable insights into how well testing is progressing, allowing you to identify issues early on and ensure that the software meets the required standards.

In this guide, we'll explore different types of software testing metrics, their benefits and drawbacks, and how to use them effectively. Let's start!

Types of Software Testing Metrics

Software testing metrics can be divided into two main types: manual testing metrics and automated testing metrics.

Manual Testing Metrics

Manual testing involves human testers running test cases without the help of automated tools. Metrics for manual testing focus on how well these efforts are working.

1. Test Case Execution Rate

This metric shows the percentage of test cases completed in a given time.
Formula: Execution Rate = (Executed Test Cases / Total Test Cases) * 100
Example: If 150 out of 200 test cases are done, the execution rate is 75%.

2. Defect Density

This metric measures the number of defects found per unit size of the software, like per thousand lines of code (KLOC).
Formula: Defect Density = Number of Defects / Size of Software (KLOC)
Example: If 20 defects are found in 10 KLOC, the defect density is 2 defects per KLOC.

3. Defect Severity Distribution

This metric categorizes defects based on their impact, helping you prioritize which ones to fix first.
Categories: Severe, High, Medium, Low
Example: If 50 defects have 10 severe, 25 medium, and 15 low issues, you should focus on fixing the critical defects first.

4. Test Case Preparation Rate

This metric shows how many test cases are created over a specific period.
Formula: Preparation Rate = Number of Test Cases Prepared / Time Taken
Example: If 30 test cases are prepared in 5 days, the rate is 6 test cases per day.

5. Test Pass/Fail Rate

This metric indicates the ratio of test cases that pass to those that are executed.
Formula: Pass Rate = (Passed Test Cases / Total Executed Test Cases) * 100
Example: If 120 out of 150 executed test cases pass, the pass rate is 80%.

Automated Testing Metrics

Automated testing uses scripts and tools to run test cases, which makes the process faster and more repeatable. Metrics for automated testing focus on how well these automated tests are performing.

1. Automation Coverage

This metric measures the percentage of test cases that are automated.
Formula: Automation Coverage = (Automated Test Cases / Total Test Cases) * 100
Example: If 500 out of 1000 test cases are automated, the coverage is 50%.

2. Execution Time

This software metric shows how long it takes to run automated test scripts.
Example: If an automated test suite takes 2 hours to run, you can compare this to the time it would take to run the same tests manually.

3. Test Script Maintenance Rate

Using this metric, you can measure how often and how much effort is required to update test scripts.
Example: If 10 test scripts need updating weekly due to application changes, this metric helps assess the effort needed to maintain automated tests.

4. Defect Detection Rate

With this metric, you can see how effective automated tests are at finding defects compared to manual tests.
Formula: Detection Rate = (Defects Found by Automation / Total Defects Found) * 100
Example: If automation finds 40 out of 60 total defects, the detection rate is 66.67%.

5. Return on Investment (ROI)

This is one of the more important metrics, and it measures the financial benefits of automation compared to its costs.
Formula: ROI = ((Gains from Automation - Cost of Automation) / Cost of Automation) * 100
Example: If automation saves $100,000 and costs $50,000, the ROI is 100%.

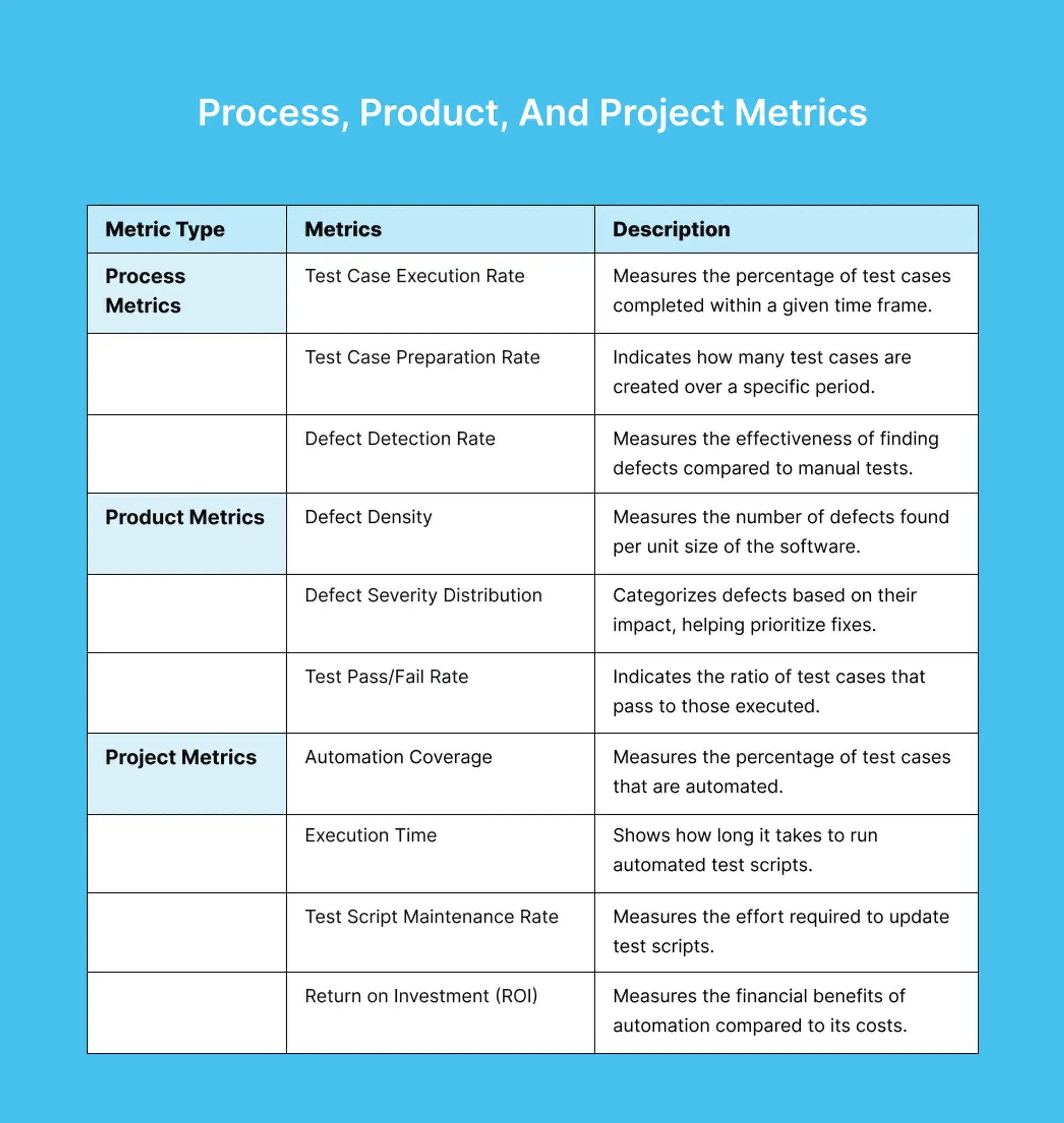

Process, Product, and Project Metrics

In addition to manual and automated testing metrics, there are broader classifications of metrics based on their focus:

Benefits of Software Testing Metrics

Have you ever thought about why software testing metrics are a big deal? Here's why they matter:

1. Improved quality: Metrics help you find and fix problems early on, ensuring your software works smoothly from the start.

2. Informed decisions: With metrics, you can see where things are going well and where they need extra attention.

3. Efficiency: Metrics point out areas where you might be wasting time or resources, helping you streamline your process and get things done faster.

4. Risk management: By tracking defects, you can spot potential issues before they cause real trouble, saving you a lot of headaches down the line.

5. Transparency: Metrics give everyone on your team a clear view of how testing is going, so everyone knows what's happening and what needs to be done.

Drawbacks of Software Testing Metrics

When it comes to software testing metrics, it's important to recognize that there are also some drawbacks to consider:

1. Data collection challenges: Gathering accurate and consistent data can sometimes be tricky, thus requiring careful attention to detail and standardization across different sources.

2. Misinterpretation: While informative, metrics can occasionally be misinterpreted, leading to decisions based on incomplete or inaccurate understandings of the data.

3. Overemphasis on metrics: While metrics are undoubtedly valuable, placing too much emphasis on them can potentially overshadow the qualitative aspects of testing, such as user experience and subjective feedback.

4. Customization needs: Each project is unique, and as such, metrics need to be tailored to fit specific requirements. However, this customization process can be time-consuming and may require ongoing adjustments as the project evolves.

5. False sense of security: Relying solely on high metric values can sometimes create a false sense of security, masking underlying issues that metrics alone may not capture, such as complex system interactions or user behavior.

When to use metrics

• Project start: Establish your baseline metrics right from the start. This will give you a reference point to track progress and improvements as you go.

• During testing: Keep an eye on those metrics as you're testing. They'll help you spot any hiccups along the way and make adjustments on the fly to keep things running smoothly.

• Post-release: Once your software is out there, reflect on your metrics. This way, you can assess how well your testing process worked and where you might need to tweak things for next time.

How to use metrics

• Define objectives: Know why you're using metrics and what you want to achieve with them. This will help you focus on what really matters for your project.

• Select relevant metrics: Choose metrics that give you the information you need to make smart decisions. It's not about collecting every possible data point but the ones that really count.

• Collect accurate data: Gather good data so your metrics actually mean something. As the saying goes, garbage in, garbage out.

• Analyze and interpret: Take the time to really dig into your metrics and see what they're telling you. Look for patterns and trends that can help you improve your testing process.

• Act on insights: And most importantly, use what you learn to make changes. After all, what's the point of measuring if you won't do anything with the information?

Examples of Software Testing Metrics in use

Example 1: Defect Density

Your team is working on a new software module. To assess the quality of their code, you should track the defect density:

• Scenario: 30 defects are found in 15 KLOC during the first testing phase.

• Calculation: Defect Density = 30 / 15 = 2 defects per KLOC

• Interpretation: The team compares this metric to previous projects and industry standards to determine if their defect density is acceptable.

Example 2: Test Case Execution Rate

Your team is executing test cases for a major release:

• Scenario: You have 500 test cases planned and complete 300 in the first week.

• Calculation: Execution Rate = (300 / 500) * 100 = 60%

• Interpretation: The team monitors this rate to ensure they are on track to complete testing before the release date. So, you may need more resources or time if the rate is lower than expected.

Example 3: Automation Coverage

During a project, you decided to automate as many test cases as possible to improve efficiency:

• Scenario: Out of 1000 total test cases, 700 are automated.

• Calculation: Automation Coverage = (700 / 1000) * 100 = 70%

• Interpretation: This metric tracks your automation progress and justifies investing in automation tools.

Example 4: ROI of Automation

You want to jump on the automation wagon and thus need to measure the financial impact of the automation initiatives.

• Scenario: Automation saves $200,000 annually, with an initial investment of $100,000 and annual maintenance costs of $20,000.

• Calculation: ROI = ((200,000 - (100,000 + 20,000)) / (100,000 + 20,000)) * 100 = 60%

• Interpretation: The ROI calculation shows the financial benefits of automation, supporting continued investment and expansion of automation efforts.

How Global App Testing can help with Software Testing Metrics

Global App Testing offers a wide range of testing solutions designed to improve the quality, efficiency, and effectiveness of your software testing process.

Here's how GAT can help with various aspects of software testing metrics:

1. Test Case Management

Global App Testing offers comprehensive test case management services, which can help you track and measure important metrics such as:

• Test Case Execution Rate: By managing and executing test cases on your behalf, GAT ensures timely and thorough testing and helps you monitor the percentage of test cases completed over a period.

• Test Pass/Fail Rate: Our detailed reporting on test outcomes helps you calculate the pass/fail rate of your test cases.

2. Defect Tracking and Reporting

One of the key metrics in software testing is defect-related metrics. Global App Testing can assist with:

• Defect Density: By providing detailed reports on the number of defects found per unit size of the software, you can better understand and track your defect density.

• Defect Severity Distribution: Our testers categorize and report defects based on their severity, helping you prioritize which issues need immediate attention.

• Defect Detection Rate: We provide insights into the effectiveness of your testing process by measuring how many defects are found during their testing activities.

3. Automated Testing Solutions

Global App Testing helps you track and improve metrics such as:

• Automation Coverage: By automating a significant portion of your test cases, GAT helps increase the percentage of test cases that are automated.

• Test Script Maintenance Rate: Our expertise ensures that test scripts are regularly updated and maintained, helping you track and manage the effort required for test script maintenance.

4. Test Coverage and Efficiency

Global App Testing ensures comprehensive test coverage, which helps with:

• Test Coverage Metrics: We help measure the extent to which your software is tested, including code coverage and requirements coverage.

• Efficiency Metrics: By providing efficient testing processes, GAT helps improve overall test productivity and reduce time-to-market for your software products.

5. Risk Management and Quality Assurance

Our services contribute to better risk management and quality assurance by:

• Improved Quality: By finding and reporting defects early, they help ensure higher software quality.

• Risk Management: Our detailed defect tracking and reporting help you manage potential risks by addressing issues before they escalate.

6. Customized Reporting and Insights

Global App Testing provides detailed, customized reports that include:

• Data-Driven Insights: Given reports provide actionable insights based on your testing metrics, helping you make informed decisions.

• Performance Monitoring: Regular updates and reports help you monitor the performance and effectiveness of your testing efforts in real time.

7. Scalability and Flexibility

GAT offers scalable testing solutions that can grow with your needs:

• Scalability: Whether you need a few test cases executed or a comprehensive suite of tests, we can scale our services to meet your requirements.

• Flexibility: We provide flexible testing solutions tailored to your specific project needs, whether it's manual testing, automated testing, or a combination of both.

Interested to learn more? Speak to our QA specialist today and schedule a free demo of our platform!
