What is Integration Testing? – Definition, Examples & Best Practices

It’s no secret that nowadays, customers are more demanding than ever. They expect more from their software – more features, more functionality, and they want it delivered fast. This puts developers and your QA team in a tough spot. The pressure to meet these high expectations can make it tempting to rush through the testing phase, thinking it’s better to release a product on time, even if it has a few bugs, rather than risk a delay.

But let’s be honest, pushing out software with glitches can backfire big time. It can lead to unhappy users, damage your reputation, and create a lot of negative buzz. In the long run, a buggy release can cause far more trouble than a short delay ever would.

That’s why it’s so important for developers to prioritize thorough testing. And when it comes to testing, integration testing is key. In this article, we’ll go over what integration testing is, why it’s so important, the different ways to do it, and some best practices to keep in mind.

We can help you drive integration testing as a key initiative aligned to your business goals

What is Integration Testing?

In Integration Testing individual modules or components are combined and tested collectively to ensure they work together as expected. The main focus is on identifying defects in the interactions between integrated components, which may not surface during unit testing (where components are tested in isolation). This type of testing focuses on the interfaces between the modules, data flow, and how different parts of the system work together.

Frame 1000008936

Let’s use an online shopping app as an example. This application might have different modules such as:

"User Authentication,"
"Product Catalog,"
"Shopping Cart," and
"Payment Gateway."

Each of these modules may function correctly on its own. However, during integration testing, we verify that, for example, after a user logs in, they can view the product catalog, add items to the cart, and successfully complete a purchase. Any issues in data exchange, communication, or sequence of operations between these modules can be detected and addressed during integration testing.

Why is Integration Testing so important?

Integration testing is one component in overall testing that helps in delivering robust and reliable software. Here are some key reasons why it’s indispensable:

Identifies interface defects: Even if individual modules are tested thoroughly, defects might arise when they interact. These could be due to mismatched data formats, incorrect method calls, or communication failures between modules.
Detects issues early: By integrating and testing modules progressively, defects can be identified and fixed earlier in the development cycle, reducing the cost and effort required for corrections.
Validates combined functionality: Integration testing ensures that the combined functionality of different modules meets the desired business requirements and performs as expected under various conditions.
Enhances system reliability: When the interactions between modules are thoroughly tested and validated, the overall system becomes more reliable and less prone to unexpected failures in production.
Facilitates smooth deployment: By identifying and fixing integration issues early, the likelihood of encountering major problems during deployment is reduced, resulting in a smoother and more predictable release process.

why-perform-integration-testing

Types of Integration Testing

There are several strategies for conducting integration testing, each with its own set of advantages and disadvantages:

integration-testing-types

1. Big Bang Approach

The Big Bang approach ntegrates all components or modules simultaneously and then testing them as a whole. This method is straightforward as it requires no preliminary integration or testing. All modules are brought together at once, and the entire system is tested in one go.

Example:

If you are developing a travel booking system, you would likely have modules like:

"Flight Booking,"
"Hotel Booking,"
"Car Rental," and
"Payment Processing."

In the Big Bang approach, all these modules would be integrated and tested together after individual unit testing is complete.

Advantages:

It’s easy to implement because it doesn’t require any specific order of integration or the creation of drivers and stubs.
In systems with few modules, the Big Bang approach can be time-efficient since it avoids the overhead of gradual integration and testing.

Disadvantages:

When a defect is found, it’s challenging to isolate the issue because all modules are tested together.
If significant defects are found during this phase, it can delay the entire project.
For larger systems, the integration of all modules simultaneously can be overwhelming and requires considerable effort to set up and test.

2. Incremental Approach

The Incremental approach integrates and tests modules step by step. This approach is more structured and helps identify and resolve defects in a more manageable way. There are several subtypes of incremental integration testing:

Bottom-up Approach

The Bottom-up approach starts with the integration and testing of lower-level or foundational modules first. These modules are tested and then combined with higher-level modules as testing progresses. Drivers, which simulate higher-level modules that are not yet integrated, are used in this approach.

Example:

Consider an inventory management system with foundational modules like:

"Database Access" and "Inventory Control" (low-level)
"User Interface" and "Reporting" (higher-level modules)

In the Bottom-up approach, you would start by testing the "Database Access" and "Inventory Control" modules before integrating them with the "User Interface" and "Reporting" modules.

Advantages:

Since low-level modules are often critical for the overall system, testing them first ensures their robustness and stability.
As modules are integrated step by step, it’s easier to isolate and fix defects.

Disadvantages:

The requirement to create drivers for simulating higher-level modules can be time-consuming and adds to the development effort.
Since high-level modules are integrated and tested later, critical issues related to user interactions or overall system behavior might be discovered late in the process.

Top-down Approach

The Top-down approach begins with the integration and testing of high-level modules first, followed by lower-level modules. Stubs, which are placeholder modules simulating the behavior of lower-level modules, are used in this approach.

Example:

In a financial app, the high-level module might be "Transaction Management," and the low-level modules could be "Account Validation" and "Audit Logging." Using the Top-down approach, you would begin by testing "Transaction Management" with stubs for the lower-level modules, gradually replacing stubs with actual modules as testing progresses.

Advantages:

Testing high-level modules early allows for the validation of the system’s architecture and design before focusing on the details.
Stakeholders can see and interact with the core features of the system early in the development process, even if some functionalities are simulated.

Disadvantages:

Creating stubs for lower-level modules can be complex and may not fully replicate the actual behavior, potentially leading to incomplete testing.
If critical issues exist in lower-level modules, they may not be discovered until later in the testing process, which can lead to delays.

Sandwich (Hybrid) Approach

The Sandwich approach, also known as the Hybrid approach, is a combination of the Bottom-up and Top-down approaches. In this method, both high-level and low-level modules are integrated and tested in parallel, meeting in the middle.

Example:

Suppose you’re developing a customer relationship management (CRM) system. You might begin by testing the "Customer Data Management" module (high-level) and the "Database
Operations" module (low-level) simultaneously. Then, you would integrate and test the middleware that connects these modules, such as "Data Processing."

Advantages:

By testing both high-level and low-level modules in parallel, you can identify and fix issues across the system simultaneously.
Teams can work on different parts of the system concurrently, potentially speeding up the testing process.

Disadvantages:

Coordinating the parallel integration and testing of multiple modules requires careful planning and management.
The need for both drivers and stubs, along with the complexity of managing simultaneous testing, can increase the initial effort and resources required.

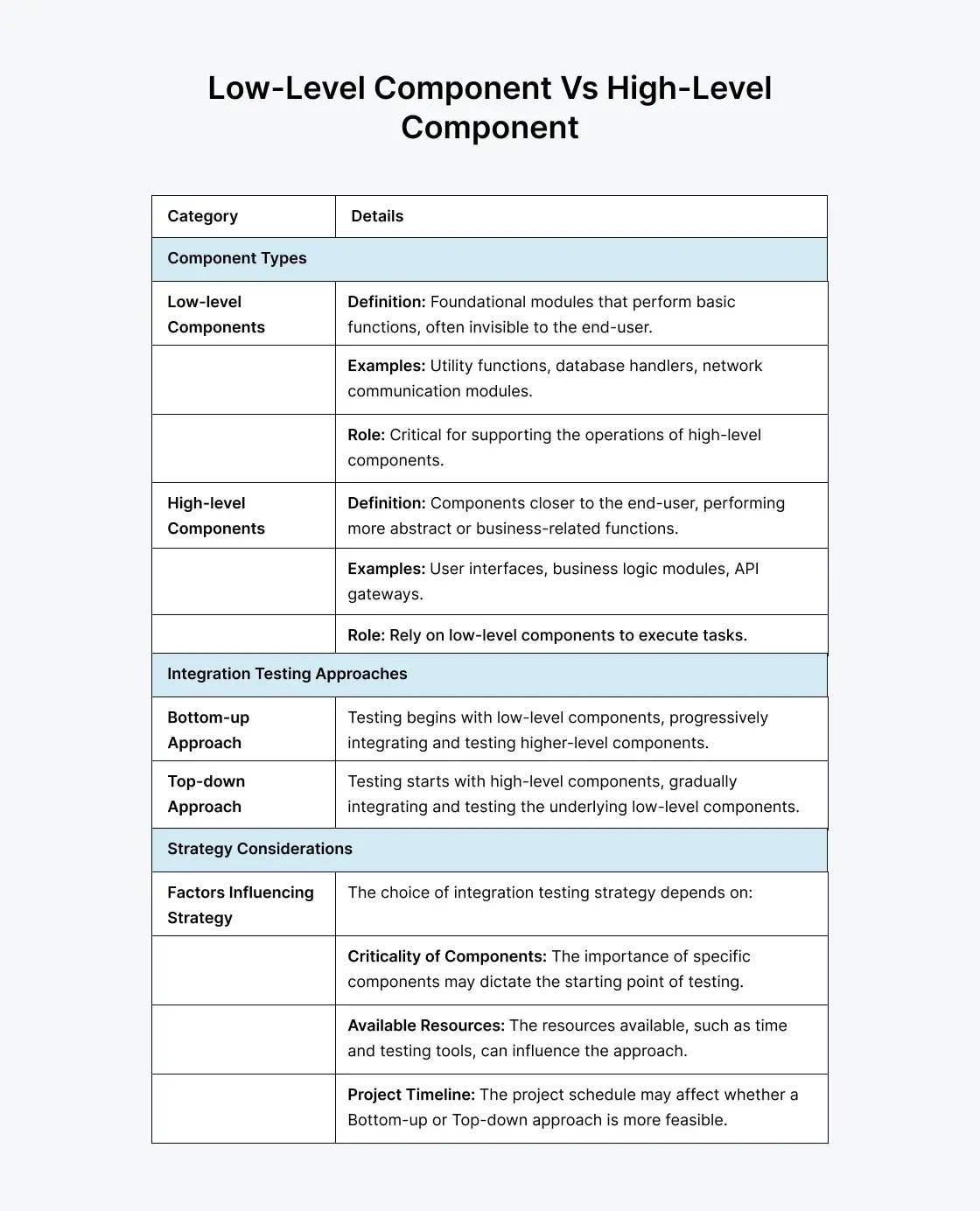

Low-level component vs High-level component

low-vs-high-level-component

Test cases for Integration Testing

To create effective test cases for integration testing means you need to thoroughly understand how different modules interact. Here are the key areas to focus on:

Interface Testing: Test cases should verify that data is correctly passed between modules. For instance, if Module A sends data to Module B, the test case should ensure that the data is transmitted accurately and that Module B processes it correctly.
Data flow: Ensure that data flows smoothly between modules and is correctly transformed or utilized as it moves from one module to another. For example, in an order processing system, the data flow might involve moving customer details from the "Customer Information" module to the "Order Processing" module and then to the "Shipping" module.
Error handling: Test how integrated modules handle errors or exceptions. For example, if Module A expects data from Module B but receives an error, the system should gracefully handle this situation without crashing.
System behavior: Observe the behavior of the entire system under various conditions, such as peak loads, minimal inputs, or unexpected sequences of operations. For example, in a financial transaction system, a test case might involve initiating a transfer from a savings account (Module A) to a checking account (Module B) while simultaneously querying the account balance (Module C).

How does Integration Testing differ from other software testing types?

Unit Testing: Unit testing focuses on individual components or modules in isolation. The goal is to verify that each unit functions correctly on its own. In contrast, integration testing examines how these units work together.
System Testing: System testing involves testing the entire system as a whole to verify that it meets the specified requirements. It comes after integration testing and focuses on end-to-end scenarios and overall system behavior.
Acceptance Testing: Acceptance testing is performed to ensure the software meets the needs of the end-user or customer. It’s often the final phase of testing before the software is released and includes user-driven test scenarios. Integration testing, on the other hand, is more technical and focuses on the interactions between modules rather than user satisfaction.

How to conduct Integration Testing?

Conducting integration testing effectively requires a systematic approach. Here’s a step-by-step guide:

Plan and design test cases:

Begin by understanding the architecture of the system and the interactions between different modules.
Identify critical interfaces and interactions that need to be tested.
Design test cases that focus on validating these interactions, data flow, and error handling.

Choose the right approach:

Depending on your project requirements, timeline, and resources, choose an appropriate integration testing strategy (Big Bang, Bottom-up, Top-down, or Sandwich).
For projects with tight deadlines and fewer modules, the Big Bang approach might be appropriate. For larger, more complex projects, consider an incremental approach.

Prepare the test environment:

Set up the test environment with all necessary hardware, software, and network configurations.
Create and configure stubs and drivers if using the Top-down or Bottom-up approaches.
Ensure that test data is ready and closely resembles what will be used in the production environment.

Execute test cases:

Begin testing according to the chosen approach, executing the test cases systematically.
Record the results of each test case, noting any defects or unexpected behaviors.
Collaborate with developers to fix identified issues, ensuring that defects are resolved promptly.

Debug and Re-test:

When defects are found, analyze them to understand their root causes.
Work with the development team to fix the defects, then re-test the affected modules to ensure the issues are resolved.

Document results:

Keep detailed documentation of the test cases executed, defects found, steps taken to resolve them, and the final results.
This documentation is valuable for future testing, audits, and understanding the system’s integration points.

Best practices of Integration Testing

To maximize the effectiveness of integration testing, follow best practices:

Use automated testing tools to streamline the execution of test cases, especially for regression testing when new modules are integrated.
Focus your testing efforts on the most critical interfaces – those that are most likely to fail or have the most significant impact on the system.
Whenever possible, adopt an incremental approach to testing. This allows for early detection of issues and reduces the risk of major defects going unnoticed until later stages.
Implement continuous integration practices to test newly integrated modules regularly. This approach allows for frequent and automated testing, catching defects as soon as they are introduced.
Thoroughly document your test cases, testing process, and outcomes. Clear documentation helps ensure that integration testing can be repeated consistently and that issues can be tracked and resolved efficiently.
As modules are integrated, consider the impact on system performance. Integration testing should include scenarios that test how well the system performs when multiple modules are working together, particularly under load.
Ensure that integration testing includes security aspects, especially when modules handle sensitive data or involve authentication and authorization mechanisms. Test how well the integrated system protects against common security threats.
While integration testing focuses on module interactions, it’s also useful to include end-to-end scenarios that cover the entire user journey across multiple modules. This helps in identifying any integration issues that might affect the overall user experience.
